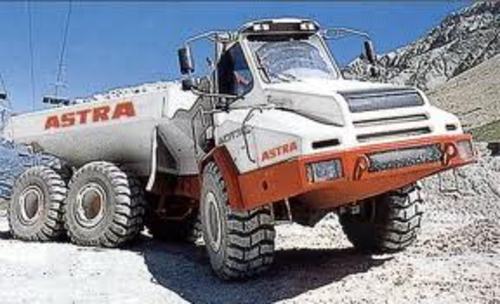

ASTRA TRUCK ADT25 ADT30 TIER 3 WORKSHOP SERVICE REPAIR MANUAL

This technical handbook contains a series of repair procedures relating to the articulated dump trucks

TITLE SECTION PAGES
INTRODUCTION from I to VIII
CONDITIONS OF USE AND
SAFETY INSTRUCTIONS 1 from 1 to 34
TECHNICAL DATA -- ADT 25 2 from 1 to 34
TECHNICAL DATA -- ADT 30 2 from 1 to 34
FAULT CODES 3 from 1 to 46
ENGINE 4 from 1 to 160
AUTOMATIC TRANSMISSION 5 from 1 to 120
FRONT AXLE -- DISC BRAKES 6.1 from 1 to 78
FRONT AXLE -- WET OIL 6.1 from 1 to 76
INTERMEDIATE AXLE -- DISC BRAKES 6.2 from 1 to 72
INTERMEDIATE AXLE -- WET OIL 6.2 from 1 to 70
REAR AXLE -- DISC BRAKES 6.3 from 1 to 66
REAR AXLE -- WET OIL 6.3 from 1 to 54
DRIVELINE 7 from 1 to 18
SUSPENSIONS 8 from 1 to 42
WHEELS AND TIRES 9 from 1 to 12
HYDRAULIC SYSTEM 10 from 1 to 152
ELECTRICAL SYSTEM 11 from 1 to 112
PNEUMATIC SYSTEM 12 from 1 to 20
GREASE SYSTEM 13 from 1 to 22
AIR CONDITIONING

---

Keywords: astra;dump;lorry;mover
File Size: 72.2 MBytes
